AutoPack 3L Dual Belt
AutoPack 3L Dual Belt
If the standard 3L set the benchmark, the new AutoPack 3L Dual Belt system raises it, giving high-performing crews the added traction and torque required to take on tougher bundles without sacrificing serviceability. The AutoPack 3L Dual Belt tube cleaning family delivers fully integrated packages built around the new AutoBox 3l Dual Belt tractor, providing greater torque and user-friendly maintenance features to enhance industrial cleaning operations for heat exchangers, condensers, evaporators, and industrial tube bundles.
Built to deliver more traction, more torque, and more control than the standard 3L. Including both standard and Sentinel-enabled configurations, different air motor options, and modular package add-ons based on application requirements.
Key Capabilities:
- Dual Belt Drive: Enhanced traction and reliable lance control for consistent cleaning performance
- Flexible Automation Levels: Choose baseline automation or Sentinel technology for data-driven cleaning and lance tracking
- Multiple Configuration Options: Select motor speed, fittings package, and package variant to match job conditions
- Complete Package Delivery: Includes organized supporting components for efficient field deployment
Product Specifications
AutoBox 3L Dual Belt
Power & Traction Without Compromise

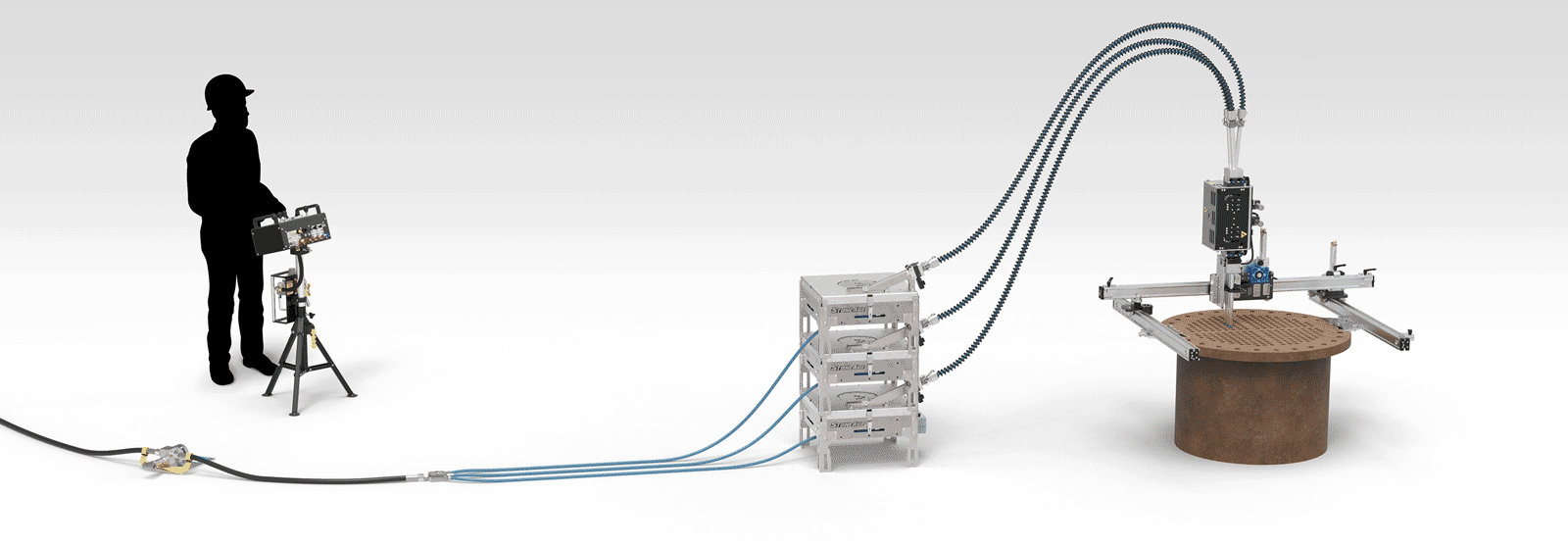

The AutoPack 3L is a high-torque triple-lance cleaning system built around the AutoBox 3L Dual Belt tractor. From horizontal exchangers to vertical evaporators with large tubes and heavy fouling, this tractor delivers exceptional performance on your toughest jobs.
- Dual-belt drive delivers up to 45% more torque
- Pulling force up to 425 lbs/190 kg
- Designed for easy servicing
- Sentinel-ready platform
Motor Options: Choose Your Power Profile
Optimize cleaning efficiency with different torque and speed configurations. Choose the right motor for your job.
500 RPM:
Maximum torque for heavy fouling and vertical applications.
900 RPM:
Higher speed for standard cleaning applications.
Maintenance & Field Service
Built for the Reality of Turnarounds
Tool-less Disassembly
Full access in minutes
No tiny fasteners
Glove-friendly
Cartridge Drive Assemblies
Easy to swap
Clean offline
Minimal downtime
Fewer Parts
Designed for serviceability
Lower spare costs
Fewer failure points
Productivity Boosters
Designed to Clean More — Faster
3 × BN24 Capability
Supports up to 8/4 Lances
Larger guide tube pitch
Up to 30% productivity gain in evaporators
Built for Versatility
Designed to integrate with Modular Hose Containment (MHC) for safer, more efficient operation.
Sentinel Ready
Upgrade to full automation anytime
Measurable performance data
Real-time feedback
