AutoPack 1L
Part #:ABX1L
Are you a StoneAge Customer? Please sign in to continue.
AutoPack 1L
The AutoPack 1L is StoneAge’s next-generation single-lance cleaning system, engineered for powerful, precise, and repeatable tube cleaning. Built on decades of field experience, it combines rugged durability with automation-ready technology to improve productivity, safety, and consistency in industrial cleaning operations.
Key Features:
- Compact Power: A smaller, lighter, and more efficient tractor designed for superior performance in tight spaces.
- Precision Engineering: Advanced drive and lance mechanisms ensure smooth, accurate operation across various bundle types.
- Automation Ready: Fully compatible with Compass and Sentinel systems for progressive automation integration.
- Enhanced Safety: Reduces operator exposure with improved ergonomics and hands-free functionality.
- Flexible Configuration: Supports both manual and automated cleaning setups to meet evolving operational needs.
Ideal For: Contractors and facilities looking to modernize their single-lance cleaning operations with automation-ready performance and safety improvements.
Product Specifications
Tractor Weight27 lb (12 kg)
Positioner Weight60 lb (27 kg)
Control Box Weight25 lb (11.5 kg)
Maximum Crimp Size0.74 in (19 mm)
Recommended Flex Lance3 mm – 8 mm (DN3 – DN8)
Max Operating Pressure100 psi (6.8 bar)
Air Consumption50 cfm @ 100 psi (1416 lpm @ 6.8 bar)
Feed Rate - 300 RPM1.2–2.4 ft/s (0.37–0.73 m/s)
Feed Rate - 500 RPM2.0–4.0 ft/s (0.61–1.22 m/s)
Push/Pull Force - 300 RPM180 lb (82 kg)
Push/Pull Force - 500 RPM120 lb (54 kg)
Part #:ABX1L
Are you a StoneAge Customer? Please sign in to continue.
PRODUCT LINE OVERVIEW
| Item | Description | Automation Level | Control System | Key Benefits |
|---|---|---|---|---|
| AutoBox 1L | AutoBox 1L hose tractor (No Sentinel) | Mechanized | Universal Pneumatic Control Box | Easy-to-use mechanized cleaning |
| AutoBox 1L with Sentinel | AutoBox 1L hose tractor with Sentinel Automation Technology | Automated | Sentinel Controller + Power Hub | Automated indexing with data capture, 30% faster clean times |

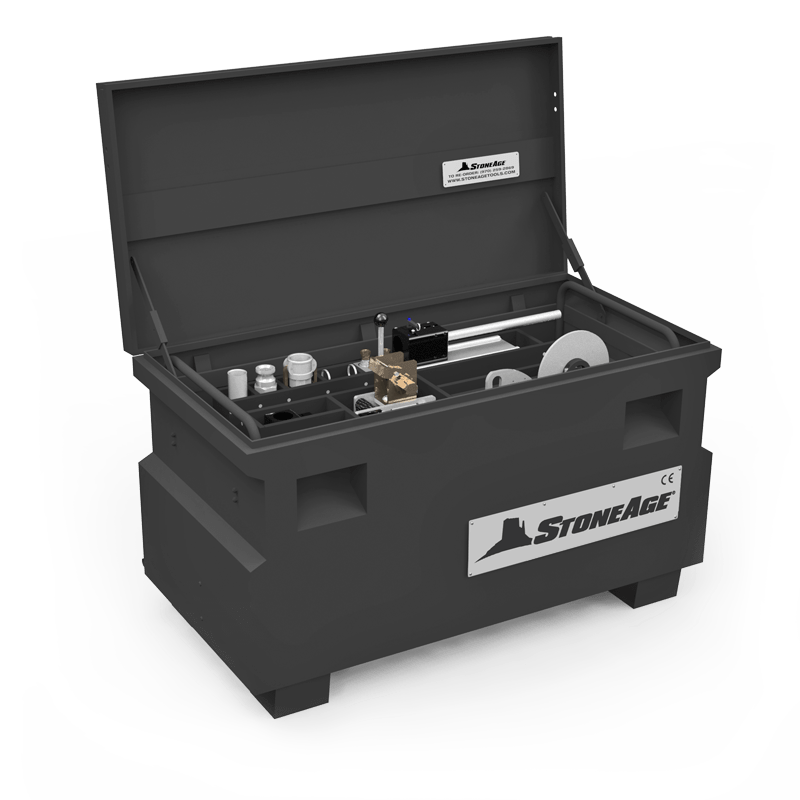

| AutoPack 1L | Tractor packaged in a metal job box with positioner and job accessories | Mechanized or Automated | Varies by package | Turnkey job setup |
AutoBox 1L — Built for Performance. Designed for Progress.
Whether you’re upgrading from manual cleaning or expanding your automation fleet, the AutoBox 1L family delivers the torque, precision, and flexibility to clean faster, safer, and smarter.
| AutoBox 1L Tractor
With the AutoBox 1L you get the proven drivetrain used across our automation platforms — delivering consistent power, longer motor life, and fewer breakdowns in the field. |
AutoBox 1L Tractor with Sentinel Automation Technology
When you’re ready to level up, the Sentinel-enabled AutoBox 1L adds automated indexing and performance data tracking for even greater efficiency and insight. |
More torque. More traction. More control — every pass, every tube.
PERFORMANCE & POWER for the Toughest Tube Cleaning Jobs
AutoBox 1L tractors deliver the strength and consistency you need to take on any job — from tight refinery bundles to tall vertical exchangers.

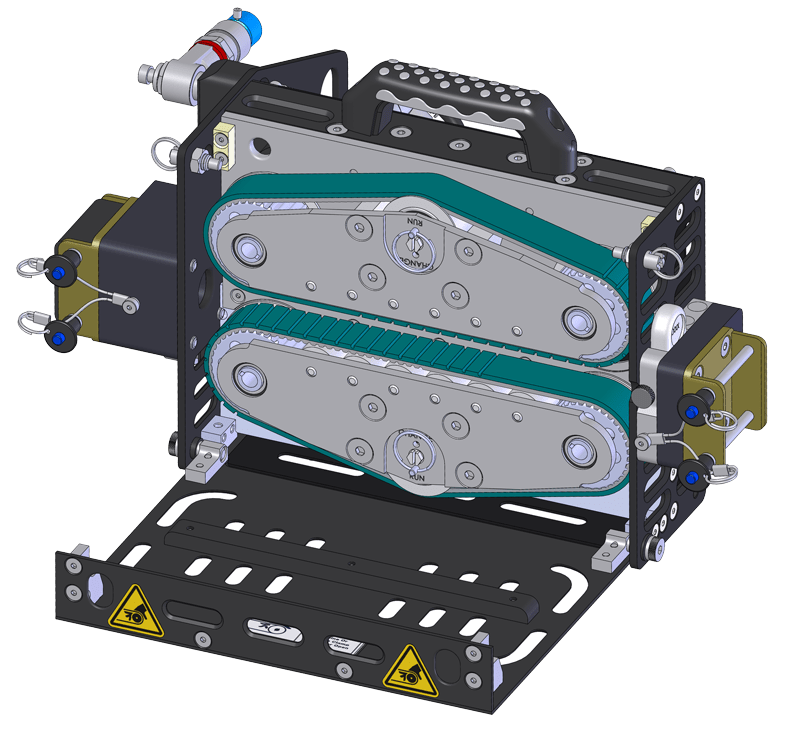

Our dual-belt drive system provides unmatched torque and traction, ensuring smooth, reliable lance feeding in any orientation.
Choose your power profile with air motor options engineered for precision control:
-
300 RPM: Maximum torque for heavily fouled or vertical applications that demand extra pulling force
-
500 RPM: Higher cleaning speed for standard operations and lighter deposits
Every detail — from lightweight modular components to toolless assembly — helps crews clean more exchanger tubes per shift with less downtime and fatigue. AutoPacks deliver the power, control, and safety features to clean smarter from day one.
PRODUCTIVITY by design
AutoBox tractors are engineered to adapt, because no two cleaning environments are alike. Whether you’re cleaning horizontal bundles in a refinery pit or vertical exchangers in a pulp mill, the AutoBox 1L system fits right in, delivering the same StoneAge performance and reliability everywhere you take it.
- Dual-belt drive delivers more power and torque for longer runs and heavier hoses
- Handles a wide range of lance sizes (up to 8–4) for heavily fouled or high-deposit exchangers
- Compact, lightweight components make transport and setup a one-person job, even in tight or elevated spaces
- Common architecture and accessories make upgrading seamless, not starting from scratch
Simplify setup. Maximize uptime. Do more with less.
