Barracuda 22k psi/1500 bar 4-port

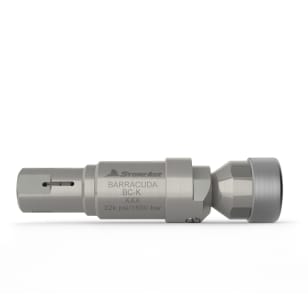

Barracuda BC-K-P2 four-jet rotary shotgun tool, elevated view showing head ports

Barracuda 22k psi/1500 bar 4-port

Barracuda speed-controlled rotary shotgun tools deliver self-rotating surface cleaning for difficult and irregular surfaces, including tanks, vessels, boilers, furnaces, and industrial equipment. The compact, field-serviceable platform works with handheld shotguns as well as automated and hands-free equipment, using jet reaction for rotation without a compressed-air drive.

Key Features

  • Controlled Rotation: Centrifugal speed control extends jet dwell time on the cleaning surface.
  • Deposit-Matched Jetting: Two-jet configurations concentrate impact for thick, heavy deposits, while four-jet configurations broaden coverage for thin, hard coatings and scale.
  • Flexible Pump Compatibility: Multiple pressure and flow classes support a wide range of waterblast systems.
  • Field Serviceable: Replaceable cartridges, seals, nozzles, and shields simplify maintenance and reduce downtime.
  • Operator-Focused Design: Lightweight construction reduces fatigue for handheld work and also suits automated applications.

Product Specifications

Pressure Range2-22k psi / 140-1500 bar
Flow Range4.3–12.1 gpm / 16–46 l/min
Inlet Connection9/16" Gland and Collar 13/16-16 (MP9)
Length7.8 in. / 19.81 cm
Nozzle TypeAP2
Diameter1.8 in. / 4.57 cm
Weight2.7 lb / 1.2 kg
Max Pressure22k psi / 1500 bar
Max. Water Temp160°F / 71°C
