StoneAge

Jack Track with Mini Radius

Part #:JT-MR-100-PKG
Are you a StoneAge Customer? Please sign in to continue.
Find the exact product specifications you need for your particular job.View Jetting App

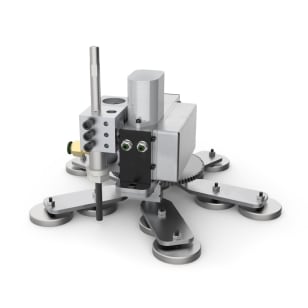

Jack Track with Mini Radius

The Jack Track has long been recognized as an innovative and easy-to-use system for industrial cutting applications. Developed for precision cutting but capable of scrap cutting as well, the Jack Track's lightweight and user-friendly construction allows for a single operator to set up, pierce the cutting surface, and cut in minutes.

Offered as an optional accessory, this Mini Radius Cutter is ideal for cutting door sheet corner and other small radii. Compatible with Jack Track system controllers, this model accepts the JTCH-010 assembly.

Features

  • Specifically designed for ease in cutting corner radii and small holes
  • Cuts Radii greater than or equal to 3.25"
  • 12VDC, Hydraulic, or Pneumatic Power Option
  • Magnetic/Suction Mount
  • Adjustable 1/8" to 12" per minute feed rate
  • Center Pin for easy location to scribed point
  • Please note: This listing does not include the Flex Track or Circle Track attachments.

Product Specifications

Cutting Radius3.25 in. / 8.26 cm Minimum
Feed Rate0.125-12.0 in/min / 0.52-5.0 mm/sec
Optimal Pressure40k psi / 2800 bar
Pressure Range20-55K psi / 1400-3800 bar
Dimensions16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JT-MR-100-PKG
