Jack Track

The Best Cutting System on the Market

The Jack Track is a versatile cold cutting system that can perform straight, radial, and pipe cuts. Developed for precision cutting but capable of scrap cutting as well, the Jack Track's lightweight and user-friendly construction allows for a single operator to set up, pierce the cutting surface, and cut in minutes.

  • Designed to handle 95% of all cutting applications in the field
  • Lightweight construction enables a single operator to complete setup and cut in minutes
  • System calculator helps operators successfully plan and perform a wide range of cutting jobs

Footage: MWP Industrial Services

Why the Jack Track?

Originally developed by Terydon, the Jack Track has long been recognized as an innovative and easy-to-use system for industrial cutting applications. Since joining StoneAge, the original development team continues to support and refine the system for added capability.

Key Features

  • Semi-rigid, flexible drive track adapts to surface contours while providing a robust base for straight, reliable cuts
  • Magnetic or vacuum pods allow easy positioning and stabilize the system during operation
  • Toothless engagement with drive rail eliminates the "cogging" of typical gear drives, resulting in smoother cuts
  • Easily expandable by splicing multiple tracks together
  • Multiple configurations available to accommodate different types of cuts, precision requirements, and power sources
Jack Track industrial cold cutting system


Preferred Cutting Method

  • Cold cutting with pressurized water replaces "hot work" with torches and grinders in volatile environments such as fuel tanks
  • The water jet can cut through multiple layers of surface in a single pass, including beveled cuts
  • Environmentally friendly and low dust


Safe Operation

  • Remote control removes operator from blast zone
  • Safety switch turns all functions off when operator's thumb is removed from controller
  • Additional Drop Sensor on wireless version recognizes irregular motion and instantly turns off all functions without operator intervention


Ease Of Use

  • Highly portable and lightweight
  • Entire system can be set up and utilized by a single operator with minimal tooling
  • Easily expandable and configurable
  • User-friendly controller

Jack Track System Configurations

The Jack Track is available in packages containing the straight track, circle/pipe cutter, and mini radius cutter. These accessories are also available a la carte.

Jack Track

12 Products
Labeled "The Best Cutting System in the market,” the AutoPack Jack Track contains the Straight Cutter, Circle Cutter, and Mini Radius Cutter. Complete with a “cutting calculator” planning tool, the Jack Track is a safe, affordable, easy-to-use system that enables any service provider to successfully perform a variety of cold-cutting jobs.
Showing 1-9 of 12 Products
Per Page
content loaded
jack track deluxe package pneumatic
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTPN-FT-CT-MR-MAG-100-PKG
jack track deluxe package wired
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTWD-FT-CT-MR-MAG-100-PKG
jack track deluxe package wireless
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTWL-FT-CT-MR-MAG-100-PKG

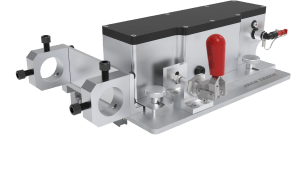

jack track circle track package
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Hole Cutting Maximum Diameter (Circle Track):
48 in. / 122 cm
Part #:JT-CT-100-PKG
jack track flex track package
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Optimal Pressure:
40k psi / 2800 bar
Part #:JT-FT-100-PKG
jack track mini radius package
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Cutting Minimum Diameter (Mini Radius):
3.25 in. / 8.26 cm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Part #:JT-MR-100-PKG
jack track controllers
Part #:JTCB-FTCT-??-100
jack track cutting heads
Optimal Pressure:
40k psi / 2800 bar
Pressure Range:
20-55K psi / 1400-3800 bar
Part #:JTCH 010-???-???
jack track focus tubes
Part #:JTCH 005-???
jack track deluxe package pneumatic
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTPN-FT-CT-MR-MAG-100-PKG
jack track deluxe package wired
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTWD-FT-CT-MR-MAG-100-PKG
jack track deluxe package wireless
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Part #:JTWL-FT-CT-MR-MAG-100-PKG
jack track circle track package
Assembly Dimensions (Circle Track):
32 x 32 x 1.5 in. / 813 x 813 x 38 mm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Hole Cutting Maximum Diameter (Circle Track):
48 in. / 122 cm
Part #:JT-CT-100-PKG
jack track flex track package
Assembly Dimensions (Flex Track):
52 x 10 x 4 in. / 1320 x 254 x 102 mm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Optimal Pressure:
40k psi / 2800 bar
Part #:JT-FT-100-PKG
jack track mini radius package
Assembly Dimensions (Mini Radius):
16 x 16 x 9 in. / 406 x 406 x 229 mm
Cutting Minimum Diameter (Mini Radius):
3.25 in. / 8.26 cm
Cutting Speed:
0.375-14 in / min / 9.5-356 mm/min
Part #:JT-MR-100-PKG
jack track controllers
Part #:JTCB-FTCT-??-100
jack track cutting heads
Optimal Pressure:
40k psi / 2800 bar
Pressure Range:
20-55K psi / 1400-3800 bar
Part #:JTCH 010-???-???
jack track focus tubes
Part #:JTCH 005-???

Next Generation Cutting at your fingertips

The Jack Track cutting system puts wireless control in the palm of your hand. Two rugged, military-grade tablets are included with the wireless system configuration. Additionally, the Jack Track app, available for download on Android and Windows PC, provides intuitive access to operation manuals, exploded views, and video tutorials.

  • Android platform
  • 8 inch screen
  • 12+ hour battery life
Jack Track wireless cutting sytem
