| Introducing 5 New Lancing System Upgrades for 2010 | April 2010 |
|
Dear {FIRST_NAME|StoneAge Customer}, Introducing 5 New Lancing System Upgrades for 2010

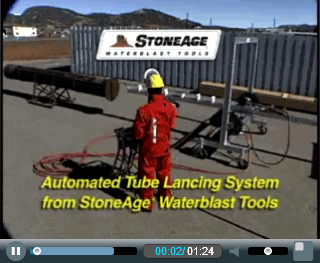

The StoneAge® Rigid Lancing System is the industry standard for both vertical and horizontal heat exchanger cleaning
Our new design for expanding the operating window offers more versatility when cleaning a variety of heat exchanger sizes. Our standard Lance Positioner provides a 56” operating window. By replacing just a few items, combined with the Universal Corner Brackets and aluminum box rails in longer sizes, it is now possible to expand this window up to 10 ft. or more. In addition, we have added eye brackets on the top corner mounts, both for lifting the frame as well as mounting on scaffolding.

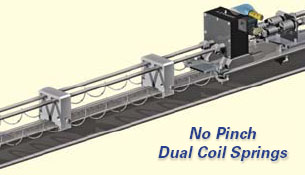

We have added a second coil spring which provides greater safety. If one spring fails in operation than the second spring will prevent lance damage. Two springs in operation will also provide better and more consistent guide block movement along the rail.
StoneAge® is now featuring more options to set up your Lance Positioner. We now offer durable swivel type wheels that can be locked into position or the use of adjustable jack stands for greater stability when in operation.

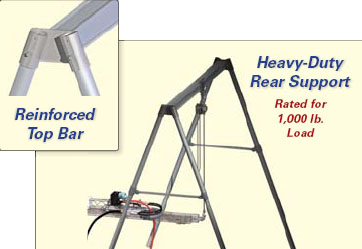

The Rear Support has been significantly strengthened. Support legs are now made from tubular aluminum, the top bar is now made from our aluminum box rails, and the top corner bracket is a welded assembly. In addition, the cross legs have an additional brace.

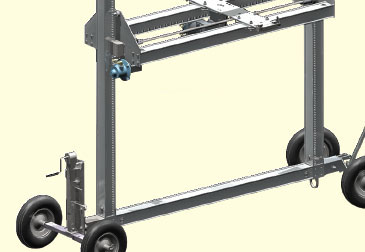

The Lance Postioner continues to offer Tilt Function and Steering Control options. The Tilt Function allows the Lance Postioner to be tilted on one side to match the tube pitch angle of a heat exchanger. The Steering Control makes movement of the Lance Positioner much easier around the heat exchanger pad. Please see the manual insert, the BRLM Upgrade Flyer, and our new Tool Talk series listed on the right side of this window.
|
